The Hypertherm Powermax 45 is a versatile plasma cutting system well-regarded for its efficiency and precision in cutting various materials. To maintain optimal performance, it’s crucial to use the right consumables. This article will discuss the hypertherm powermax 45 consumables, including their types, functions, and best practices for replacement.

Overview of Plasma Cutting

Plasma cutting is a process that uses a high-velocity jet of ionized gas (plasma) to cut through electrically conductive materials. The Powermax 45 is designed for cutting mild steel, stainless steel, aluminum, copper, and other conductive metals with a thickness of up to 1 inch (25 mm).

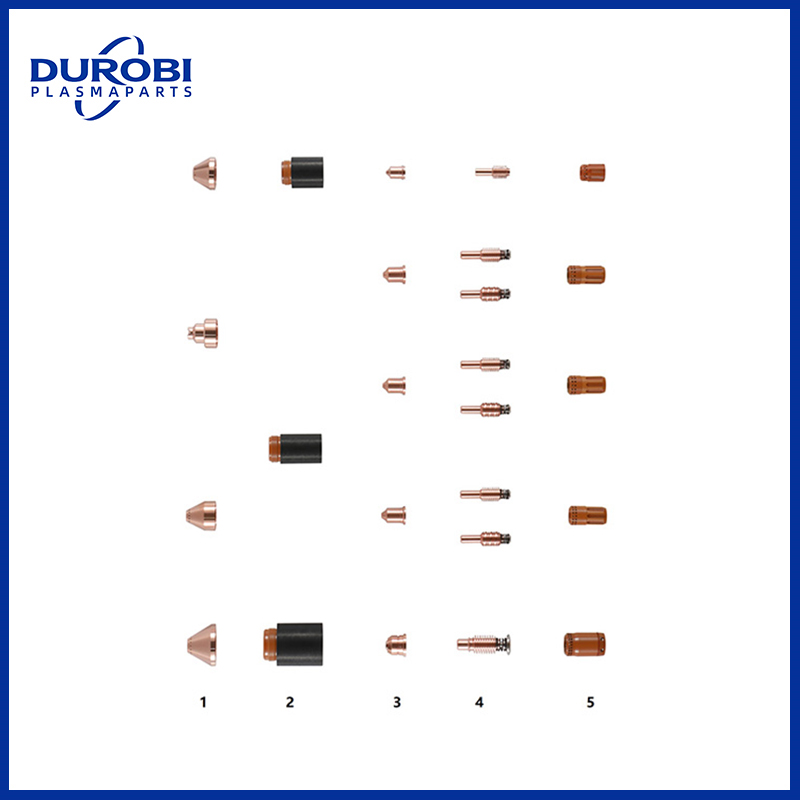

Types of hypertherm powermax 45 consumables

Consumables are parts that wear out over time and require regular replacement to ensure the plasma cutter operates effectively. The main consumables for the Powermax 45 include:

1. Electrodes

2. Nozzles

3. Swirl Rings

4. Retaining Caps

5. Shielding Cups

6. Filter Elements

1. Electrodes

Electrodes are critical components that create the arc necessary for plasma cutting. The Powermax 45 uses a specific type of electrode designed to deliver a stable and concentrated arc. The common electrodes for this model are:

• Standard Electrodes: Suitable for general cutting applications.

• Longer-Life Electrodes: Designed for extended use, these can withstand higher temperatures and provide a more stable arc for longer periods.

2. Nozzles

Nozzles control the flow of the plasma and help focus the arc. The Powermax 45 typically uses:

• Standard Nozzles: Ideal for most applications, providing a good balance between cut quality and speed.

• Fine Cut Nozzles: These are used for more intricate work, allowing for finer cuts and better edge quality. They are ideal for thinner materials.

3. Swirl Rings

Swirl rings are designed to help stabilize and direct the plasma flow. They create a swirling motion that mixes the air with the plasma gas, enhancing cutting performance. Regular inspection and replacement of swirl rings are essential to maintain cut quality.

4. Retaining Caps

Retaining caps hold the nozzle in place and protect it from damage. They ensure that the nozzle remains securely attached during operation. Over time, retaining caps can wear out, leading to potential misalignment of the nozzle.

5. Shielding Cups

Shielding cups protect the cutting area from external contaminants and help maintain a consistent arc. While not always used, they are beneficial in certain applications, particularly in environments with a lot of debris.

6. Filter Elements

Filter elements prevent contaminants from entering the air supply and damaging the internal components of the plasma cutter. Regularly replacing filter elements is critical for prolonging the life of the machine.

Replacement Guidelines

To ensure optimal performance of the Powermax 45, follow these guidelines for replacing consumables:

1. Regular Inspection: Check consumables regularly for signs of wear, such as discoloration, burn marks, or physical damage. This helps identify when replacements are necessary.

2. Follow Manufacturer Recommendations: Always refer to the Hypertherm user manual for specifications on replacement intervals and compatible consumables.

3. Quality Matters: Use genuine Hypertherm consumables or high-quality alternatives to ensure compatibility and performance. Low-quality substitutes can lead to inconsistent cuts and increased wear on the machine.

4. Storage Practices: Store consumables in a clean, dry environment to prevent contamination and damage. Avoid exposing them to extreme temperatures or moisture.

Tips for Optimal Performance

To maximize the efficiency and lifespan of the Powermax 45, consider the following tips:

1. Adjust Cutting Parameters: Depending on the material and thickness being cut, adjusting the amperage and cutting speed can help achieve the best results.

2. Maintain Cleanliness: Keep the work area clean and free of debris to prevent contamination of the cutting process.

3. Use Proper Gas Supply: Ensure that the gas supply is adequate and free from moisture and impurities. This affects the quality of the plasma arc.

4. Training and Operation: Proper training in using the plasma cutter can significantly impact performance. Ensure operators understand how to adjust settings based on the material and thickness.

The Hypertherm Powermax 45 is a powerful tool that, when paired with the right consumables, can deliver exceptional cutting quality. Regular maintenance and replacement of electrodes, nozzles, swirl rings, retaining caps, shielding cups, and filter elements are essential for optimal performance. By following best practices and guidelines, users can ensure their plasma cutting operations remain efficient and effective, ultimately leading to better results and extended equipment life.
